Having seen the nice sailing pirogue built by Jim Stumpf, I decided to build one myself.  After many compilications, I acquired the plans drawn by Phil Bolger from http://www.common-sense-boats.com/pirogue.htm.

I haven't documented all of the steps, time and costs for this boat, but I do have a few photos.

Sides attached to stem and bulkheads in place.
01-Jan-2004
Centre bulkhead is just held in place with tape
01-Jan-04
Inside the hull
04-Jan-04
A better shot
01-Jan-04
Hull bottom attached
01-Jan-04
Looks flat don't it
01-Jan-04
But joints sealed with backing plate
18-Jan-04
Lots of weight
18-Jan-04
Gunwales and keel scarfed to length
18-Jan-04
Gunwales attached
07-Mar-04
Deck sides attached to inwale
07-Mar-04

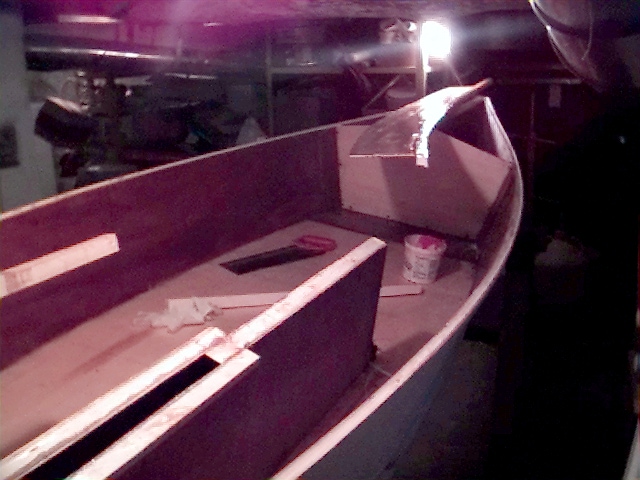

Centreboard case
07-Mar-04
Looking back
07-Mar-04
Down the centreboard slot
07-Mar-04
Side Decks Attached
14-Mar-04
The centreboard fits
14-Mar-04

Top of centre board
14-Mar-04

Decks and Coaming Attached
If you look at the right side, you can see the gussets I used to stiffen that deck.
Also showing is the deck hatch opening that I built similar to the one on the other pirogue and the Mouse.  Another similar hatch is in the foredeck.
4-Apr-04
View Looking Aft
4-Apr-04
Mast and sprit pole
11-Apr-04
Kick-up Rudder (other side of case has not been attached
11-Apr-04
Cockpit cover for storage and transport
18-Apr-04
Inside of cover - later beefed up with cross pieces
18-Apr-04
Boat moved to garage - 2 coats of polyester resin on bottom.
17-May-04
Uncovered
17-May-04
Look - another PVC dolly - the front wheels are doubled for better performance on sand
17-May-04
View from aft
17-May-04

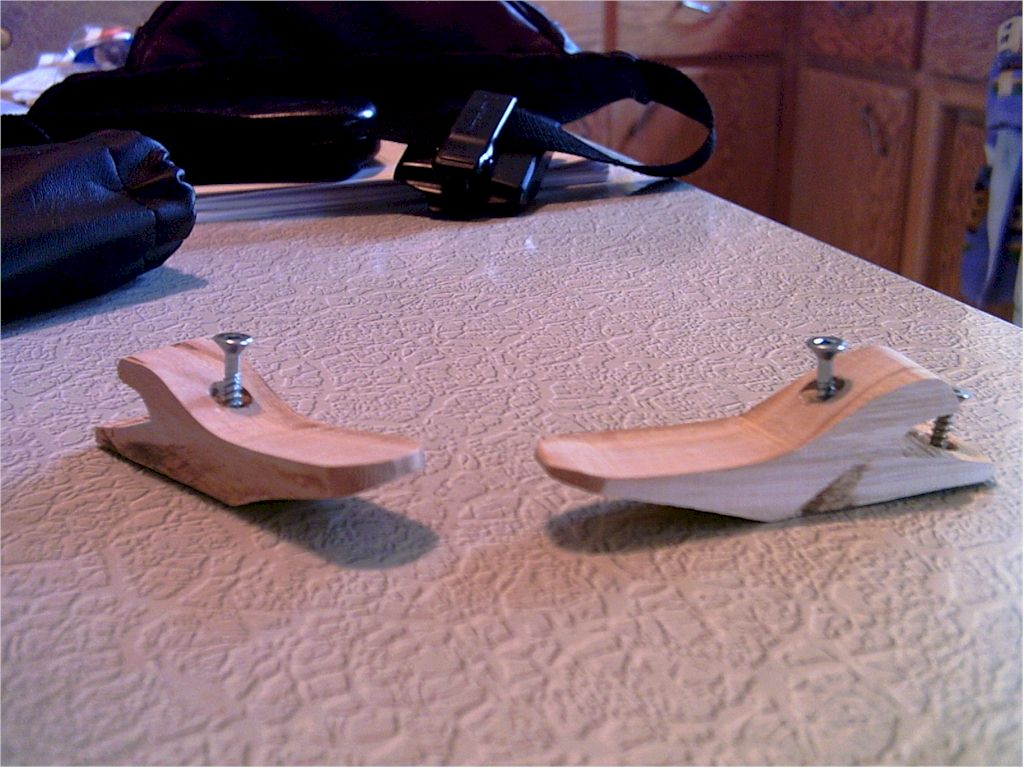

Jam Cleats made from elm
13-Jun-04

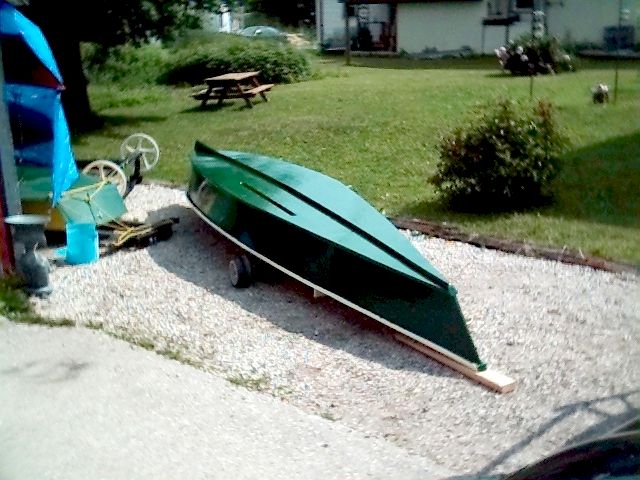

First coat of paint
27-Jun-04
Second coat complete
1-Jul-04
LAUNCH DAY - 11-Jul-2004 - Eugenia Lake

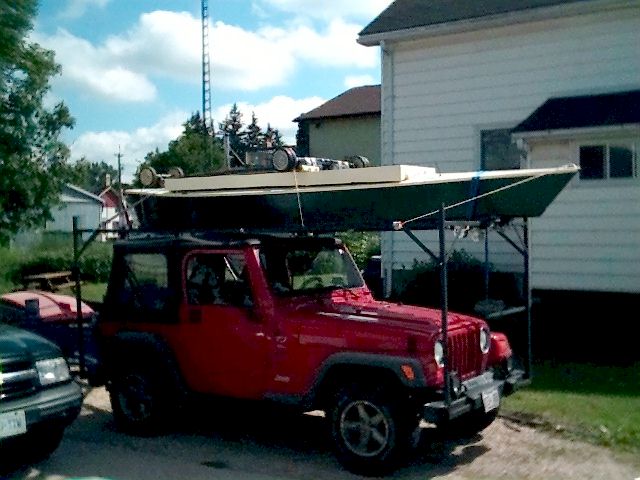

Loaded and ready to go What goes up (hopefully) must come down
Realizing that there is no cleat for the rudder Trueman uses some good Neustadt 10W30 Beer to christen the boat "Bear Pie"
It floats! Paddling off - I'm sitting on a toolbox - much too high. I later sit on the bottom.
The crew keeps a weather eye out for plunder.
Mom in a MouseBoat is sighted The crew's sister in her One Sheet Skiff


DISCLAIMER: Because the construction of any boat is dependent on factors of materials and craftsmanship that are beyond my control, I can accept no responsibility for any item constructed based on information found on this web-site.
