MiniCup 2001

Home ] Up ] MiniCup Construction ] [ MiniCup 2001 ] MiniCup 2002 ] MiniCup 2003 ] MiniCup 2004 ] MiniCup Modifications ]

Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
June 24, 2001 - Maiden Launch Connestoga Lake SingleHand Partly Cloudy -24ºC - Winds light - 5knots 1 hour? 1 hour 20Min?
Finally Launched.  After loading the MiniCup on top of my Jeep first thing in the morning, I headed down to the lake.  A trip to the Harriston LCBO provided some wine for the christening of MiniBear.  Just prior to arriving at the lake, I alerted the rest of the family and they started the 3/4 hour trip while I unloaded and started rigging.  Unloading went well with only some minor scrapes and I was rigged within 2 hours of arrival.  Future plans include keeping the sail on the boom to lessen this time.

I launched without a hitch under light winds and then puddled around the lake for about 1 hour.  I had some problems with the daggerboard rising up when the wind died or when caught in irons, and my rudder wasn't fully down originally as well.  After an hour I came in to retrieve my refreshments and noticed my family still there, taking advantage of the small beach.  I went back out and the wind was even lighter so I got to practice my tacking a bit.  The boat is amazingly stable.  I was even able to stand up in it when the wind died completely.

After another hour, I headed back to shore and beach landed without much problem.   My rudder will need to be adjusted to kick up a bit farther though as it was dragging on the ground.  I received many nice comments from other people at the club about my new boat and the design.  My dolly worked well, not only for launching, but retrieval as well, so not to de-rig and load it on the Jeep for the return trip.

De-rigging went not too bad, although I had to be careful cutting off the wire ties on my sail to avoid cutting the sail.  A pair of scissors will be a tool to add.   Folding the sail was a bit of a challenge with all the traffic in the parking area and I couldn't be bothered loading my carrier on the back of the Jeep so I just heaved everything inside.  Then I started loading the boat.  This did not go well at all.  I was parked at the same spot where I had unloaded, but was sideways on a slight hill.  What I found was that the bottom of the boat was now very slick from being in the water and I couldn't get a grip on it.  After a few tries that involved the boat slipping off and going bang (no damage to the boat, but paint on the hood of the Jeep) a nice gentleman noticed my problems and helped me get it loaded.   I'm going to have to design a better loading method.  The hull paint took quite a beating as I expected and will need to be patched some.  I was glad that someone was there to help otherwise I might not have been able to load it by myself.   The next week will see me fixing my loading problems I hope.  Off to the hardware store!!

Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
June 28, 2001 Connestoga Lake SingleHand Clear -29ºC - Winds light < 5 knots 45 minutes 50 minutes

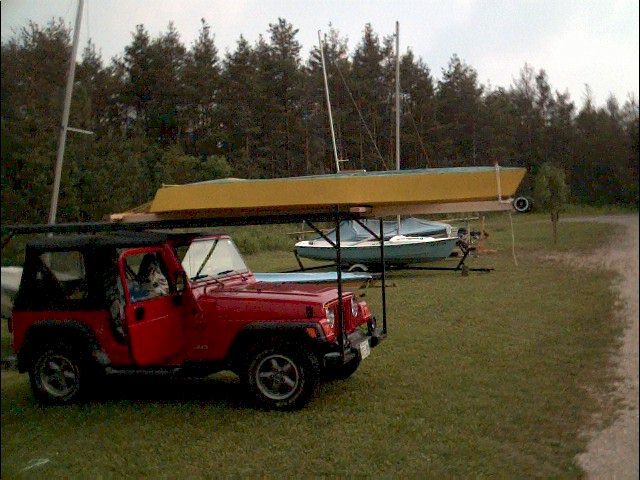

Arrive at launching area

Straps removed - ready to unload

Slid forward on rack

Bow on ground

Moved forward until back engages

Unloaded!

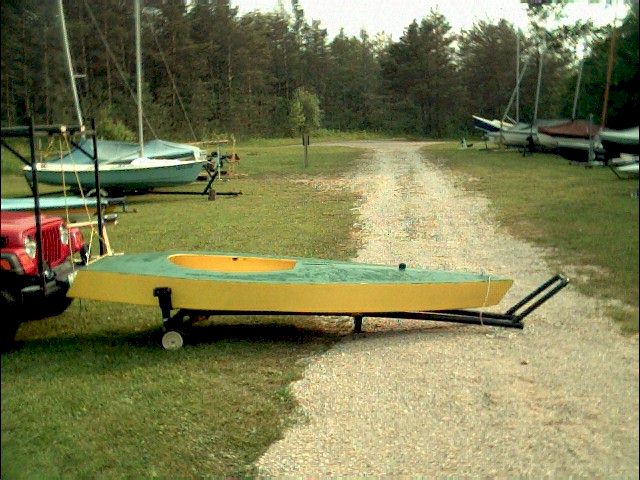

On the dolly ready to launch

Now a chance to try those things that I figured out after my first launch.  I was alone this time, so I was only able to take pictures of the unloading.  I modified my roof rack to make a "car" that the boat would be strapped to to prevent it from sliding, especially when loading.  I built a mini dagger-board that slid into a hole in the car to prevent the boat from sliding forward on the car and tied it fore and aft.   The rails on the car slid between the bunks on the roof rack, and I moved the casters on the bunks to the aft end of the car.  That way when I lift the bow of the boat, it rolls back.  The bunks were also shortened from their original 14' so that the casters will fall off the end and the nose wheel will be just in front of front of the bunks.  Now I just have to paint them, and cover them with outdoor carpet.  This system worked quite well, even on a slope and while loading the slippery boat on recovery.

As far as the sailing went, I attached a wind indicator made from an old coat hanger and some cassette tape to the forward part of the gaff, and it helped a lot, especially with the very light winds that I had.  The wind died completely on me when it was time to get back in, so I paddled part of the way.  I did have a problem with stability going down-wind when I got caught in a motor-boat wake.  The boat started to rock from side to side and began doing it faster.  I pulled the mainsheet in and didn't pitch-pole fortunately.    I also used a suggestion I received to roll the sail up on itself and then lashed it to the boom and gaff using the mainsheet and halyard.  I cut the ties at the tack, clew and head to reduce the sail tension.  Hopefully this will make rigging much faster next time.  The only actual mistake I think I made was in putting my halyard up the halyard block backward.   It didn't work well, but was not a big problem.

Hopefully I'll get some of these fixes as well as some paint patching I had missed done and will get out again next week, preferably with some wind.  I'll probably not get out on the long weekend.  Perhaps this time I'll remember to take my life jacket.   I had forgotten it this time and had to stop at Canadian Tire on the way to pick one up.  I needed another one anyway for my mother who wants a ride.

Things to fix/change:

On recovery of the boat, one of the wheels fell off my launching dolly so I have to attach it better.
Patch paint on deck and hull
Make new wind indicator
Paint loader car and bunks on rack
Add dowel to lock down tiller
Make rudder kick up higher
Add rope loop to tie down dagger-board
Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
July 8, 2001 Connestoga Lake SingleHand Clear -27ºC - Winds moderate 10 knots 35 minutes 40 minutes
Well - a much better sailing day.  I actually managed to get some speed out there.  I think that the balance of the sail to the size of the boat must be just about right.  Loading and unloading went much better now that I have some more experience as well.  I changed how I tie down the rudder to use a cleat, and after an on-water adjustment, it worked well.  With the light chop and the wakes from power boats, I ended up with about 1" of water in the cockpit.  The sailing went well and I even dared to put the lee-ward side in the water a bit, but not for long.  I had to do a bit of downwind sailing and it didn't go quite so well and I did my first accidental gybe.  I managed to recover by hurling myself to the high side of the boat, letting go of the mainsheet and tiller in the process (bad idea) but didn't end up wet.  The dagger-board floating up started to get annoying, so I'm going to have to do something about it.  I was originally going to stay out for about 4 hours, but came back in after about 2 hours.  I was feeling fairly tired from a golf tournament (golf is not my game) the prior day and the wind was getting to be more than I was comfortable with.
During reloading, I managed to get the water out of the cockpit easily by lifting the bow of the boat to get it off of the dolly, then rolling it upside down on the grass.  I then rolled it on to the "car" I used for loading.  I've got some ideas for a winch or block and tackle system to aid reloading that I'm going to work on as well.

Things to fix/change:

Paint loader car and bunks on rack
Add rope loop to tie down dagger-board
Winch to reload with
Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
August 4, 2001 Minet's Point, Lake Simcoe, Barrie SingleHand Clear -31ºC - Winds 0-10 knots 40 minutes 35 minutes

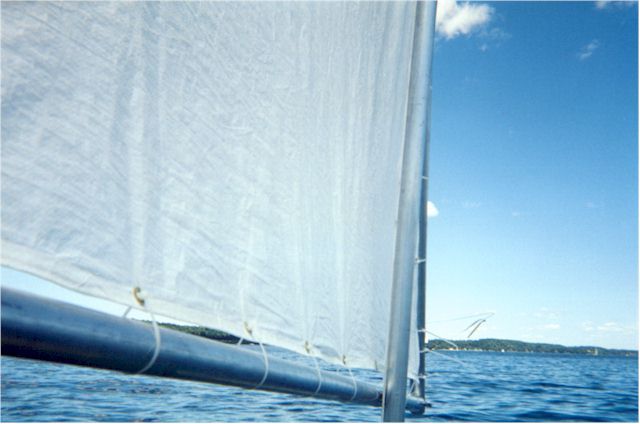

Heading Out

Heading Out

Kempenfest

Big Rocks on the shore - they're bigger up close

Big houseboat I got a lot closer to shortly

Heading Back to the point

View of the bay from shore

It's surprising how long it's been since I've been out.   Summer time will do that to you.  Family reunions, visiting, things to do around the house.  A number of things got done on the boat though as well.  The loading carriage and bunks got painted, and the carriage got covered with outdoor carpet.   Paint touch-ups on the boat, minor sail repair and re-rigging, and I built a "trunk" for the Jeep to hold my stuff when transporting the boat on a family trip, which this was.  They went to visit Kempenfest while I puttered around in the bay.  The facilities at Minet's Point are very well set up for dinghy launching.  There's a free shallow ramp that works well with a dolly and a beach as well as ample parking if you arrive early enough in the day.

For the original loading of the boat, I used a make-shift block and tackle which didn't help quite as much as I had hoped.  I think I will have to use a winch.  I also built an extension arm for the roof rack that allows me to hoist the stern of the boat up well forward of the front of the Jeep and that worked quite well.  My first beach launching went fairly well although I used the dagger-board as a paddle to get pointed out how I wanted.  Even with light winds, in practically no time, I was out in the middle of the bay.  There were lots of PWCs and power boats out which generated moderate swells that generally weren't too much trouble to deal with as long as I was able to point into them.  The only difficult ones were wakes that approached the sides of the boat, especially when I had the boom out which accentuated the effect.  Sheeting the boom in helped a lot.  The bay has lots of very deep holes in it that generate some strange currents and at times I found myself becalmed and literally spinning in circles which was quite frustrating.  I sailed up the bay to the shore where the festivities were on and along the shore.  As I was approaching a point with lots of rocks, the wind died and I almost ended up on them, but I turned the boat around and managed to get out although I almost collided with a moored houseboat because I had so little control in such light winds.
To get back to my launching site, I had to sail downwind for most of the way.  During this, I did 3 accidental gybes, but fortunately not serious ones as I was trying to keep the sail sheeted in fairly well.  Because the prevailing winds blow directly at the point, and had started picking up to 10 knots or better, I ended up going past the point and then sailing back upwind to it in order to land.  I'm not confident of my skills going exactly down-wind on a run.  While landing, my daggerboard grounded fairly solidly and took a slight bit of damage where it exits the daggerboard case, but fortunately there was no damage at all to the case.  Re-loading and loading the boat went fairly well although I tried to use just one pulley to lift the carriage and that ended up being more work than using two.  I've been lacing the sail onto the boom and spars using a very nice lacing knot that goes on and undoes easily, and I also find that it works well to keep the sail dry after dropping the halyard.

Things to fix/change:

Add rope loop to tie down dagger-board!!
Winch to reload with
Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
Aug 11, 2001 Connestoga Lake SingleHand Clear -27ºC - Winds moderate - 5 knots 30 minutes 35 minutes
Back out on Connestoga Lake - it won't be much longer until it's empty.  I managed to get west about as far as the Girl Guides camp this time, partly by being determined.  With the shape of the lake, there's a  weird spot where all three arms meet and the wind is quite unpredictable.  I got through thanks to my new wind indicator made out of a piece of PVC pipe and a coat hanger with cassette tape strips.  I was also quite careful in keeping control of my boom and watching for motor boat swells.  In spite of all of this, there wasn't a lot of wind and what there was was unpredictable.  My trip back to dock was down wind, and I managed to avoid accidental gybes by not going directly down wind.  I did do a couple of gybes, but they were fairly careful ones with practically no wind.  Over all, not too bad of a day for puttering around, but frustrating when the wind died.  My leg fell asleep from crouching in the cockpit.  Docking was a bit of a challenge as I got nicely up to the dock, but my painter was on the wrong side of the mast.  By the time I got it straightened out, I was drifting around and decided to just do a beach landing instead.
During reloading, I had a nice chat with a couple from France who had just acquired an International 505 that needed a good bit of work.  They were surprised at the fact that I had built my own boat and had some quite nice comments.  I also learned not to try to reload with the Jeep being up hill from the boat.  It made for some very impressive grunting and heaving.

Things to fix/change:

Add rope loop to tie down dagger-board!
Winch to reload with
Date Location Crew Weather Time To Unload/Rig Time to Unrig/Load
Aug 28, 2001 Connestoga Lake SingleHand Partly Cloudy - 20ºC - Winds 15knots 22 minutes 25 minutes

Where did the water go?

Not much water over there

No - that's not a toy Jeep

That's were it went!

Probably my last sail of the season on Connestoga Lake.  The wind was much higher than I have been out in, but I decided to try it anyway.  The mini-cup capsized twice while trying to get if from the beach to the dock.  I finally gave up and did a beach launch.  Rather than try anything too enthusiastic, I played catch the seagull for about 1/2 hour.  In the 15 knot winds, the MiniCup went like stink across the lake, but the darned gulls kept getting away.  The wind then started to pick up, so I retrieved the boat after a fairly nice docking and then loaded it up.  Of course just as I got the boat mostly de-rigged, the wind died down to a more reasonable level, but that's the way it goes.  I now have a hand winch on the Jeep roof rack and it makes a heck of a difference although I need to add another snatch block to straighten out the path for the cable.
